DMX Equipment > Multi-directional Drive 2D/DMX 512

Features

1. 304 stainless steel construction.
2. Multi-directional drive, suitable for different nozzle types.
3. For fresh- and pool water.
4. Swing angle: Rotation range above the water surface up to 120°.
5. The Multi-directional Drive 1D/DMX512 can control the running direction of the stepper motor through software and console to make the water column present various performances.
6. The 4mm plate bending process is used to enhance the overall stability of the equipment.
7. The equipment’s main power source and control (internal control board, drive, switching power supply) are integrated, which reduces the cost of cables, control cabinets, and control rooms for customers.
8. The integrated DMX512 lighting device allows the light to better follow the water column. Compared with conventional CNC equipment, the Multi-directional Drive 1D/DMX512 can better reflect the perfect combination of water and light.

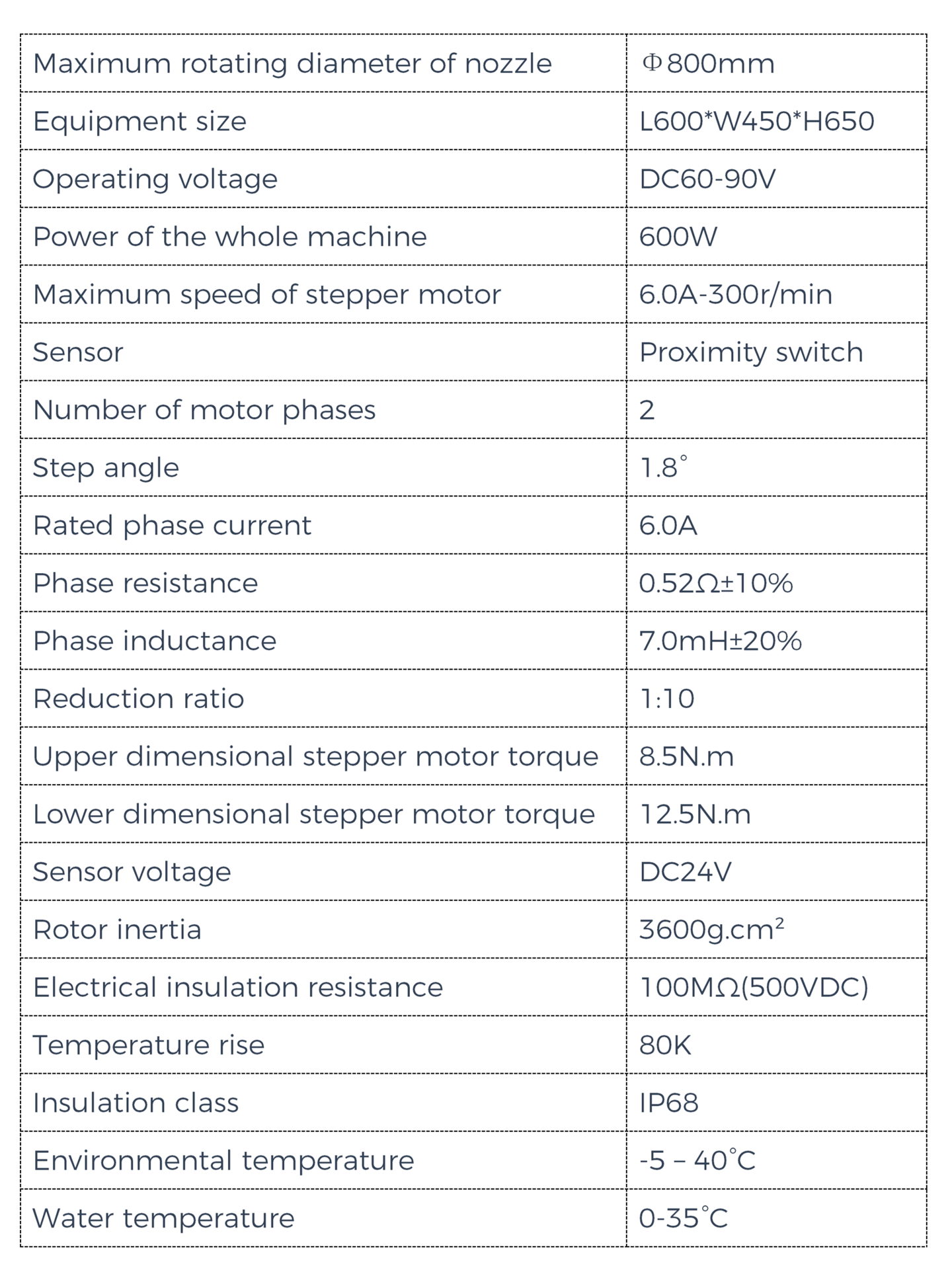

Technical Parameter
